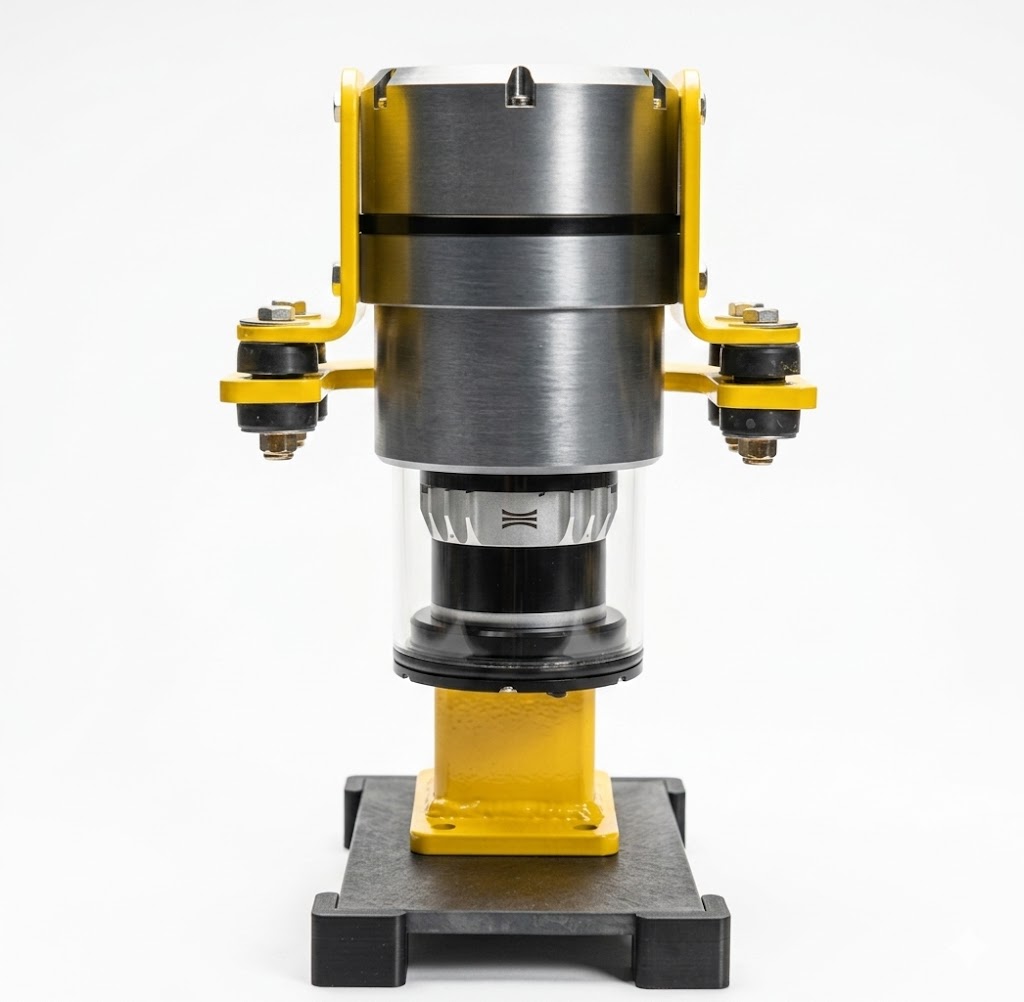

LiDARShield-1100™ : OQ Solution I Sensor Cleaning

SELF-CLEANING LIDAR

Product Specifications
View	Continuous observation with no interruption during cleaning (Interruption-Free View)
Cleaning Cycle Time	40 seconds
Cleaning Lifespan	50,000 cycles
FoV & Sensor Options	Ouster OS0: Horizontal 300° / Vertical 90° Ouster OS1: Horizontal 300° / Vertical 45° Custom configurations available for other sensors
Detection Range	To be finalized at product launch (Minor reduction expected compared to bare sensor)
Dimensions	260 × 146 × 137 mm
Weight	6.2 kg (excluding mount)
Cleaning Trigger	Timer-based automatic cleaning Electrical trigger input supported
Max Power Consumption	80 W
Input Voltage	18–32 VDC
Operating Temperature Range	-40°C to 60°C
Ingress Protection	IP69
Vibration Rating	LiDARShield-1100™ Enclosure: MIL-STD-810G LiDAR Sensor: Per manufacturer specifications
