TopLine : OQ Solution I Sensor Cleaning

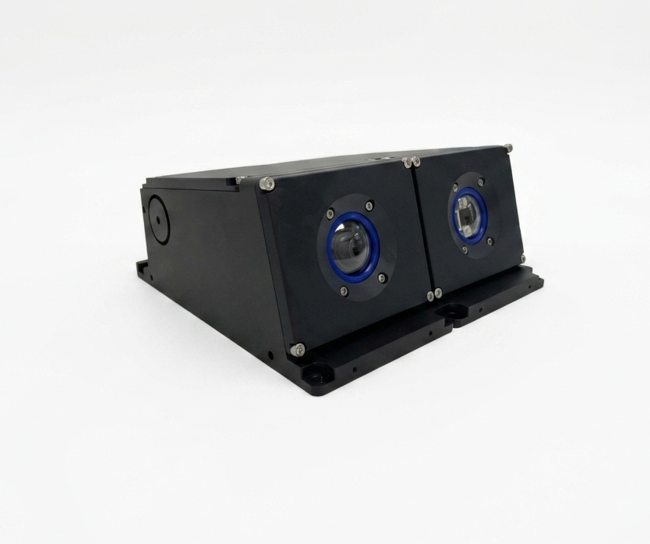

SELF-CLEANING CAMERA

Product Specifications
View	Continuous observation with no interruption during cleaning (Interruption-Free View)
Cleaning Cycle Time	4 seconds
Cleaning Lifespan	50,000 cycles
FoV & LED Options	Up to 140° FoV / Visible & Infrared (Vis / IR) LED modules
Dimensions (W × L × H)	240 × 200 × 100 mm
Weight	3.5 kg
Cleaning Trigger	Configurable timer-based automatic cleaning / Electrical trigger input supported (within input voltage range)
Max Power Consumption	40 W
Input Voltage	9–36 VDC
Operating Temperature Range	-40°C ~ 70°C (common across all versions)
Ingress Protection	IP67 / IP69
Vibration Rating	MIL-STD-810

LiDARShield-1100™
